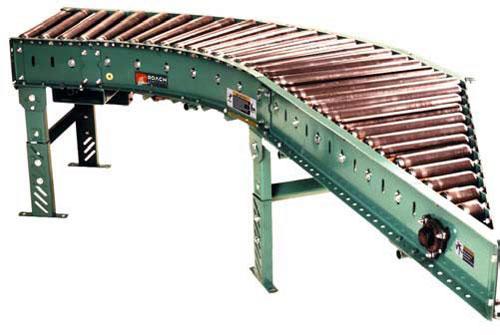

138LRCS Light Duty Belt Driven Live Roller Curve Spur

Manufacturer: Roach Conveyors

Volume Discounts Apply

FOB: Midwest warehouse
Lead time: 3 weeks
NOTE: Conveyor supports shown are optional and not included in the price.
$50.00 Minimum Order


For product diversion to spur line or for merging, Roach's Light Duty Belt Driven Live Roller Curve Spur is ideal in light duty applications.

Specifications:

  • Tread Rollers: 1.9" dia. to 1-3/8" x 16 gauge tapered rollers, model 138T; 1-3/8" dia. x 18" gauge, model 138G with 5/16" hex, galvanized straight tangent rollers.
  • Roller Centers: 1-9/16" measured at inside radius of unit.
  • Pressure Sheaves: Provides drive belt pressure to upper tread rollers.
  • Belt: "B" section V-belt.
  • Take-Up: Screw type adjustable sheave with flat idler sheaves to maintain belt tension.
  • Tangents: 12" opposite spur end on 60°/30° unit; 18" opposite spur on 45°/45° unit.
  • Speed: 60 FPM, constant.
  • Bearings: End shafts are supported by precision, heavy duty, lubricated, ball bearing units with cast iron housings.
  • Bed: 6" x 1-1/2" x 12 gauge formed steel channel frame.
  • Roller Chain:  Drive shaft is driven by No. 50 chain.
  • Motor Drive: 1/2 HP Super "E" motor (230/460/3).
  • Spur Hand/Drive Location: Drive located on outside of curve. Specify hand of spur as "left hand" or "right hand" and location of drive specified as "left hand drive" or "right hand drive". Drive location determined with reference point located at outside of curve. For models slave driven (less drive), specify drive shaft location. Contact Material Flow for more information.
  • Capacity: 300 lbs. total distributed live load.

Many more options and sizes available.

All of Roach's pre-engineered line can easily be adapted to special application needs. The basic unit has already been engineered and can often be shipped quickly.

If you need a large quantity of this product, call us at 1-800-338-1382 for additional bulk discounts!
  • Model Info

6 Models Available for 138LRCS Light Duty Belt Driven Live Roller Curve Spur

  • Prices subject to change without notice

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by clicking the red button below.

Model No. Between Frames Overall Width Curve Degree Spur Degree Inside Radius Weight Price Each Qty
138LRCS-10-60 10" 13" 60° 30° 32-1/2" 393 lbs. $2487.00
138LRCS-16-60 16" 19" 60° 30° 32-1/2" 492 lbs. $2663.00
138LRCS-22-60 22" 25" 60° 30° 32-1/2" 588 lbs. $2907.00
138LRCS-10-45 10" 13" 45° 45° 32-1/2" 384 lbs. $2319.00
138LRCS-16-45 16" 19" 45° 45° 32-1/2" 453 lbs. $2400.00
138LRCS-22-45 22" 25" 45° 45° 32-1/2" 528 lbs. $2621.00
