199S Steel Roller Gravity Curved Sections - 24 Hour Shipment

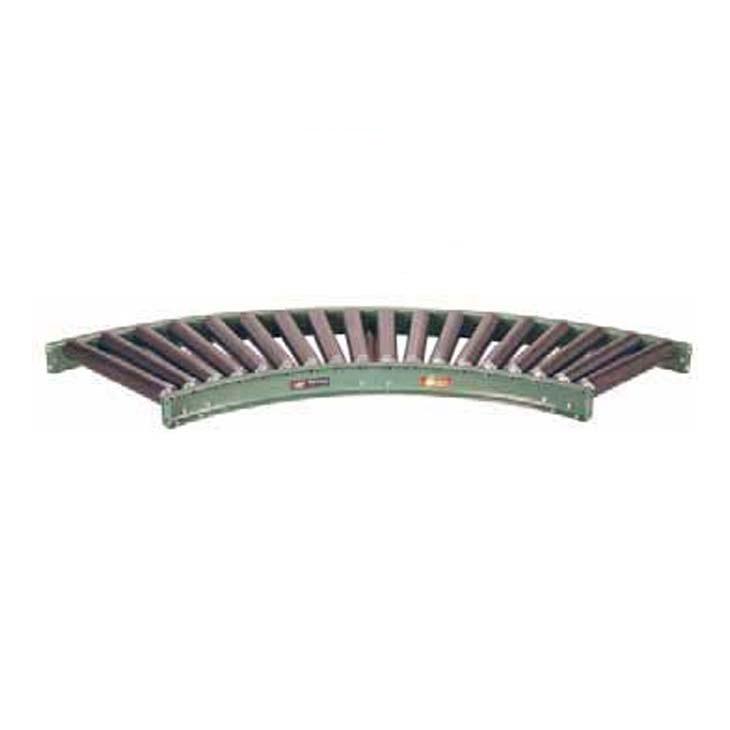

199S Steel Roller Gravity Curved Sections

Supplier: Roach Conveyors

In Stock

FOB: Midwest Warehouse

Specifications:

  • Rollers: 1.9" x 9 gauge steel tubing, model 199S, with straight ends reamed to provide smooth bearing seats.
  • Frames: Formed steel painted channel 3-1/2" x 1-1/2" x 10 gauge set high; 4-1/2" x 1-1/2" x 10 gauge set low.
  • Roller Capacity: 260 lbs. per roller.
  • Bearings: Integral plain ball bearings, zinc plated, grease packed.
  • Frame Capacity: 1300 lbs. max. distributed live load per 10' section with supports at 10' centers; 3200 lbs. at 5' centers.
  • Couplings: Butt type.
  • Axles: 7/16" hex shaft, spring loaded.
  • Optional Frame: 4" @ 5.4 lbs. struc. steel channel frame, rollers 3/16" high, may vary due to structural tolerances.

Special lengths, structural frames and low settings are available. Call Material Flow for details.

WARNING: Prevent pinch points that exist when gravity conveyors are permanently attached to power conveyors and other equipment!

All of Roach's pre-engineered line can easily be adapted to special application needs. The basic unit has already been engineered and can often be shipped quickly.

  • Model Info

30 models for 199S Steel Roller Gravity Curved Sections

  • Prices subject to change without notice

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by clicking the red button below.

Model No. Between Frames Description Inside Radius Roller Quantity Roller Pattern Weights Price Ea. Qty
199SC-13-H-90 13" 90 Degrees 32-1/2" 22 Single 217 lbs. $627.20
199SC-13-H-45 13" 45 Degrees 32-1/2" 9 Single 120 lbs. $347.40
199SC-15-H-90 15" 90 Degrees 32-1/2" 22 Single 246 lbs. $650.40
199SC-15-H-45 15" 45 Degrees 32-1/2" 9 Single 134 lbs. $362.30
199SC-17-H-90 17" 90 Degrees 32-1/2" 22 Single 274 lbs. $686.00
199SC-17-H-45 17" 45 Degrees 32-1/2" 9 Single 147 lbs. $373.20
199SC-19-H-90 19" 90 Degrees 32-1/2" 22 Single 303 lbs. $722.30
199SC-19-H-45 19" 45 Degrees 32-1/2" 9 Single 161 lbs. $389.40
199SC-21-H-90 21" 90 Degrees 32-1/2" 22 Single 331 lbs. $757.00
199SC-21-H-45 21" 45 Degrees 32-1/2" 9 Single 175 lbs. $403.70
199SC-23-H-90 23" 90 Degrees 32-1/2" 41 Double 360 lbs. $1121.70
199SC-23-H-45 23" 45 Degrees 32-1/2" 17 Double 188 lbs. $585.30
199SC-25-H-90 25" 90 Degrees 32-1/2" 41 Double 388 lbs. $1150.00
199SC-25-H-45 25" 45 Degrees 32-1/2" 17 Double 202 lbs. $596.10
199SC-27-H-90 27" 90 Degrees 32-1/2" 41 Double 417 lbs. $1175.30
199SC-27-H-45 27" 45 Degrees 32-1/2" 17 Double 216 lbs. $613.00
199SC-31-H-90 31" 90 Degrees 48" 40 Double 474 lbs. $1377.10
199SC-31-H-45 31" 45 Degrees 48" 20 Double 243 lbs. $691.80
199SC-33-H-90 33" 90 Degrees 48" 40 Double 503 lbs. $1407.00
199SC-33-H-45 33" 45 Degrees 48" 20 Double 257 lbs. $705.30
199SC-37-H-90 37" 90 Degrees 48" 40 Double 560 lbs. $1459.20
199SC-37-H-45 37" 45 Degrees 48" 20 Double 284 lbs. $738.40
199SC-39-H-90 39" 90 Degrees 48" 40 Double 589 lbs. $1487.60
199SC-39-H-45 39" 45 Degrees 48" 20 Double 298 lbs. $753.40
199SC-43-H-90 43" 90 Degrees 48" 40 Double 646 lbs. $1546.30
199SC-43-H-45 43" 45 Degrees 48" 20 Double 325 lbs. $784.10
199SC-47-H-90 47" 90 Degrees 48" 40 Double 703 lbs. $1610.40
199SC-47-H-45 47" 45 Degrees 48" 20 Double 353 lbs. $814.50
199SC-51-H-90 51" 90 Degrees 48" 40 Double 760 lbs. $1673.10
199SC-51-H-45 51" 45 Degrees 48" 20 Double 380 lbs. $865.60
