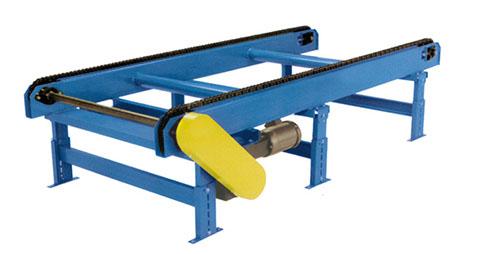

2 Strand Pallet Handling Chain Conveyor

Manufacturer: New London

Easily handle a wide variety of pallet sizes and weights with New London Engineering’s Pallet Handling Conveyors. The units work for either wood or composite pallets, and they are available in multiple chain configurations. Plus, the pop-up option allows perpendicular change of direction of pallet.

Strand chain conveyors are used to convey heavy duty, larger sized items. They are also used to convey pallets with the runners going the wrong way. (The runners run perpendicular to the chain direction.)

Features:

  • Ethernet connections are available for your changing programming needs
  • Our palletizer has a very small footprint, saving valuable floor space
  • Our 2-axis stacker is economical and very dependable
  • Frame: 7 Gauge Formed
  • Carrier Chain: #2060 or #2080
  • Wear Strip: UHMW
  • Chain Centers: Per Application
  • Drive: End drive for single direction (optional center drive for reversing)
  • Chain Speed: 30 FPM
  • Bearings: Grease Sealed
  • Motor: 1/2 HP, 230/460/3/60 TEFC
  • Strands: 2, 3, 4 or more
  • Electrical Controls: Optional


1 Model Available for
2 Strand Pallet Handling Chain Conveyor

*Prices subject to change without notice

Products without prices are not available for purchase through our shopping cart
If you are interested in these products, add them to your quote list by clicking the red button below

Model No. Frame Carrier Chain Motor Price Ea. Qty
NL2ST 7 Gauge Formed No. 2060 or No. 2080 1/2 HP 230/460/3/60 TEFC Call for Pricing
