250-SRH Series Heavy Duty Curves

Manufacturer: Roll-A-Way

FOB: Midwest Warehouse
$12 handling fee for orders less than $150

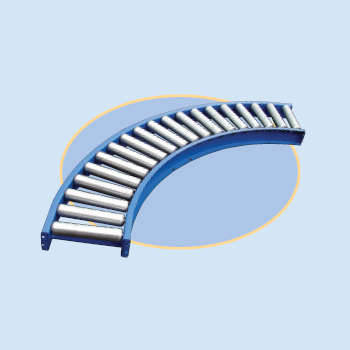

These heavier duty units, either 45° or 90°, can be used to move packages and boxes around corners or obstacles to complete a conveyor line. Guard rails can be added for extra protection.

Specifications:

  • Rollers: 2-1/2", 11 gauge
  • Axles: 11/16" hex, spring loaded
  • Frame: 4" x 5.4" structural channel powder coated blue
  • 5 welded cross braces
  • Butt couplers standard
  • Roller capacity: 750 lbs.
If you need a large quantity of this product, call us at 1-800-338-1382 for additional bulk discounts!
  • Model Info

10 Models Available for 250-SRH Series Heavy Duty Curves

  • Prices subject to change without notice

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by clicking the red button below.

Model No. Roller Centers Overall Width Curve Weight Price Ea. Qty
250-SRH-0312-45 3" 12" 45 degrees 88 lbs. $515.00
250-SRH-0318-45 3" 18" 45 degrees 112 lbs. $590.01
250-SRH-0324-45 3" 24" 45 degrees 135 lbs. $651.02
250-SRH-0330-45 3" 30" 45 degrees 157 lbs. $754.00
250-SRH-0336-45 3" 36" 45 degrees 179 lbs. $827.01
250-SRH-3012-90 3" 12" 90 degrees 162 lbs. $708.00
250-SRH-0318-90 3" 18" 90 degrees 210 lbs. $810.01
250-SRH-0324-90 3" 24" 90 degrees 260 lbs. $912.02
250-SRH-0330-90 3" 30" 90 degrees 311 lbs. $1014.01
250-SRH-0336-90 3" 36" 90 degrees 362 lbs. $1122.03
