254S Gravity Curve

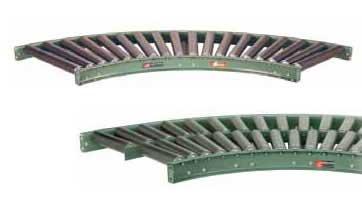

254S Gravity Conveyor Curves - 2.5 Inch Dia. x 14 Ga. Rollers

Supplier: Roach Conveyors

Volume Discounts Apply
FOB: Midwest Warehouse
8 Week Lead Time

Specifications:

  • Rollers: 2-1/2" x 14 gauge steel tubing, model 254S, with smooth swaged ends.
  • Frames: Formed steel painted channel 3-1/2" x 1-1/2" x 10 gauge set high. 4-1/2" x 1-1/2" x 10 gauge set low.
  • Roller Capacity: 290 lbs. per roller.
  • Bearings: Integral plain ball bearings, zinc plated, grease packed.
  • Frame Capacity: 1,300 lbs. maximum distributed live load per 10' section with supports at 10' centers; 3,200 lbs. at 5' centers.
  • Couplings: Butt type.
  • Axles: 7/16" hex shaft, spring loaded.

Optional structural steel channels, special lengths, widths and height settings available.

WARNING: To prevent pinch points that exist when gravity conveyors are permanently attached to power conveyors, use connector brackets with safety pop-out rollers.

All of Roach's pre-engineered line can easily be adapted to special application needs.

  • Model Info

30 models for 254S Gravity Conveyor Curves - 2.5 Inch Dia. x 14 Ga. Rollers

  • Prices subject to change without notice

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by clicking the red button below.

Model No. Between Frames Description Inside Radius Roller Quantity Roller Pattern Weight Price Ea. Qty
254SC-13-H-90 13" 90 Degree Curve 32-1/2" 18 Single 217 lbs. $693.20
254SC-13-H-45 13" 45 Degree Curve 32-1/2" 9 Single 120 lbs. $373.90
254SC-15-H-90 15" 90 Degree Curve 32-1/2" 18 Single 246 lbs. $720.80
254SC-15-H-45 15" 45 Degree Curve 32-1/2" 9 Single 134 lbs. $383.80
254SC-17-H-90 17" 90 Degree Curve 32-1/2" 18 Single 274 lbs. $748.40
254SC-17-H-45 17" 45 Degree Curve 32-1/2" 9 Single 147 lbs. $392.70
254SC-19-H-90 19" 90 Degree Curve 32-1/2" 18 Single 303 lbs. $774.10
254SC-19-H-45 19" 45 Degree Curve 32-1/2" 9 Single 161 lbs. $412.90
254SC-21-H-90 21" 90 Degree Curve 32-1/2" 37 Single 331 lbs. $801.60
254SC-21-H-45 21" 45 Degree Curve 32-1/2" 17 Single 175 lbs. $441.00
254SC-23-H-90 23" 90 Degree Curve 32-1/2" 37 Double 360 lbs. $1204.00
254SC-23-H-45 23" 45 Degree Curve 32-1/2" 17 Double 188 lbs. $627.50
254SC-25-H-90 25" 90 Degree Curve 32-1/2" 37 Double 388 lbs. $1226.40
254SC-25-H-45 25" 45 Degree Curve 32-1/2" 17 Double 202 lbs. $641.50
254SC-27-H-90 27" 90 Degree Curve 32-1/2" 37 Double 417 lbs. $1249.60
254SC-27-H-45 27" 45 Degree Curve 32-1/2" 17 Double 216 lbs. $653.10
254SC-31-H-90 31" 90 Degree Curve 48" 40 Double 474 lbs. $1458.80
254SC-31-H-45 31" 45 Degree Curve 48" 20 Double 247 lbs. $736.30
254SC-33-H-90 33" 90 Degree Curve 48" 40 Double 503 lbs. $1505.90
254SC-33-H-45 33" 45 Degree Curve 48" 20 Double 257 lbs. $747.10
254SC-37-H-90 37" 90 Degree Curve 48" 40 Double 560 lbs. $1532.40
254SC-37-H-45 37" 45 Degree Curve 48" 20 Double 284 lbs. $774.90
254SC-39-H-90 39" 90 Degree Curve 48" 40 Double 589 lbs. $1558.30
254SC-39-H-45 39" 45 Degree Curve 48" 20 Double 298 lbs. $790.30
254SC-43-H-90 43" 90 Degree Curve 48" 40 Double 646 lbs. $1598.50
254SC-43-H-45 43" 45 Degree Curve 48" 20 Double 325 lbs. $836.80
254SC-47-H-90 47" 90 Degree Curve 48" 40 Double 703 lbs. $1639.70
254SC-47-H-45 47" 45 Degree Curve 48" 20 Double 353 lbs. $880.50
254SC-51-H-90 51" 90 Degree Curve 48" 40 Double 760 lbs. $1679.20
254SC-51-H-45 51" 45 Degree Curve 48" 20 Double 380 lbs. $927.90
