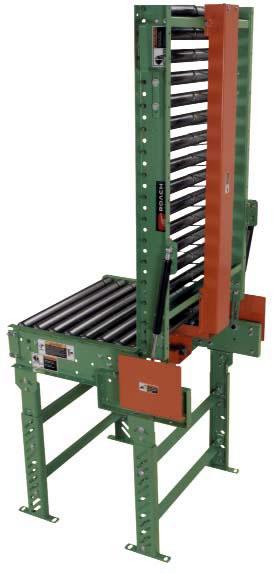

796LSG Line Shaft Gate Module

Manufacturer: Roach Conveyors

Volume Discounts Apply

FOB: Midwest warehouse
Lead time: 4 weeks
NOTE: Conveyor supports shown are optional and not included in the price.
$50.00 Minimum Order


Roach's Line Shaft Gate Module offers the ultimate versatility—driven by the Line Shaft Driven Live Roller, so no drive is ever required, and it offers operator accessibility to eliminate dangerous walk-overs.

Specifications:

  • Tread Rollers: 1.9" dia. x 16 gauge steel, model 196G grooved.
  • Drive Belt: 3/16" dia., polyurethane belts. Nominal 15 lbs. per roller drive.
  • Drive Shaft: 1" dia. C1018 cold rolled steel shaft, located on long side of spur.
  • Couplings: Couplings located one end only.
  • Lift: Gas cylinder provides assist for raising/lowering.
  • Bearings: Precision, lubricated, ball bearing units with composite housings.
  • Bed: 4-1/2" x 1-1/2" x 10 gauge formed steel channel frame on actual lift gate. 7" x 1-1/2" x 12 gauge on 2' horizontal section.
  • Motor Drive: Unit is designed to be driven by the Line Shaft Driven Live Roller.
  • Specify Hand: Specify if gate is left hand or right hand.

All of Roach's pre-engineered line can easily be adapted to special application needs. The basic unit has already been engineered and can often be shipped quickly.

If you need a large quantity of this product, call us at 1-800-338-1382 for additional bulk discounts!
  • Model Info

63 Models Available for 796LSG Line Shaft Gate Module

  • Prices subject to change without notice

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by click the red button bellow.

Model No. Between Frames Overall Width Roller Centers Gate Length Weight Price Ea. Qty
796LSG-15-3-60 15" 18" 3" 60" 128 lbs. $1850.00
796LSG-15-3-72 15" 18" 3" 72" 157 lbs. $1941.00
796LSG-15-3-84 15" 18" 3" 84" 186 lbs. $2035.00
796LSG-19-3-60 19" 22" 3" 60" 142 lbs. $1917.00
796LSG-19-3-72 19" 22" 3" 72" 166 lbs. $2016.00
796LSG-19-3-84 19" 22" 3" 84" 190 lbs. $2111.00
796LSG-21-3-60 21" 24" 3" 60" 150 lbs. $1953.00
796LSG-21-3-72 21" 24" 3" 72" 180 lbs. $2053.00
796LSG-21-3-84 21" 24" 3" 84" 210 lbs. $2152.00
796LSG-25-3-60 25" 28" 3" 60" 163 lbs. $2021.00
796LSG-25-3-72 25" 28" 3" 72" 196 lbs. $2163.00
796LSG-25-3-84 25" 28" 3" 84" 229 lbs. $2226.00
796LSG-27-3-60 27" 30" 3" 60" 172 lbs. $2113.00
796LSG-27-3-72 27" 30" 3" 72" 201 lbs. $2163.00
796LSG-27-3-84 27" 30" 3" 84" 234 lbs. $2268.00
796LSG-33-3-60 33" 36" 3" 60" 190 lbs. $2182.00
796LSG-33-3-72 33" 36" 3" 72" 224 lbs. $2296.00
796LSG-33-3-84 33" 36" 3" 84" 258 lbs. $2408.00
796LSG-39-3-60 39" 42" 3" 60" 212 lbs. $2266.00
796LSG-39-3-72 39" 42" 3" 72" 245 lbs. $2386.00
796LSG-39-3-84 39" 42" 3" 84" 278 lbs. $2505.00
796LSG-15-4-60 15" 18" 4" 60" 115 lbs. $1801.00
796LSG-15-4-72 15" 18" 4" 72" 138 lbs. $1884.00
796LSG-15-4-84 15" 18" 4" 84" 161 lbs. $1966.00
796LSG-19-4-60 19" 22" 4" 60" 124 lbs. $1865.00
796LSG-19-4-72 19" 22" 4" 72" 149 lbs. $1951.00
796LSG-19-4-84 19" 22" 4" 84" 174 lbs. $2037.00
796LSG-21-4-60 21" 24" 4" 60" 135 lbs. $1896.00
796LSG-21-4-72 21" 24" 4" 72" 162 lbs. $1984.00
796LSG-21-4-84 21" 24" 4" 84" 189 lbs. $2072.00
796LSG-25-4-60 25" 28" 4" 60" 147 lbs. $1959.00
796LSG-25-4-72 25" 28" 4" 72" 178 lbs. $2050.00
796LSG-25-4-84 25" 28" 4" 84" 209 lbs. $2144.00
796LSG-27-4-60 27" 30" 4" 60" 156 lbs. $1990.00
796LSG-27-4-72 27" 30" 4" 72" 184 lbs. $2084.00
796LSG-27-4-84 27" 30" 4" 84" 212 lbs. $2178.00
796LSG-33-4-60 33" 36" 4" 60" 169 lbs. $2084.00
796LSG-33-4-72 33" 36" 4" 72" 208 lbs. $2182.00
796LSG-33-4-84 33" 36" 4" 84" 247 lbs. $2281.00
796LSG-39-4-60 39" 42" 4" 60" 189 lbs. $2179.00
796LSG-39-4-72 39" 42" 4" 72" 232 lbs. $2181.00
796LSG-39-4-84 39" 42" 4" 84" 275 lbs. $2388.00
796LSG-15-6-60 15" 18" 6" 60" 109 lbs. $1753.00
796LSG-15-6-72 15" 18" 6" 72" 129 lbs. $1825.00
796LSG-15-6-84 15" 18" 6" 84" 149 lbs. $1900.00
796LSG-19-6-60 19" 22" 6" 60" 113 lbs. $1811.00
796LSG-19-6-72 19" 22" 6" 72" 135 lbs. $1885.00
796LSG-19-6-84 19" 22" 6" 84" 157 lbs. $1961.00
796LSG-21-6-60 21" 24" 6" 60" 120 lbs. $1838.00
796LSG-21-6-72 21" 24" 6" 72" 144 lbs. $1915.00
796LSG-21-6-84 21" 24" 6" 84" 168 lbs. $1993.00
796LSG-25-6-60 25" 28" 6" 60" 126 lbs. $1893.00
796LSG-25-6-72 25" 28" 6" 72" 153 lbs. $1973.00
796LSG-25-6-84 25" 28" 6" 84" 180 lbs. $2054.00
796LSG-27-6-60 27" 30" 6" 60" 130 lbs. $1923.00
796LSG-27-6-72 27" 30" 6" 72" 158 lbs. $2002.00
796LSG-27-6-84 27" 30" 6" 84" 186 lbs. $2085.00
796LSG-33-6-60 33" 36" 6" 60" 141 lbs. $2009.00
796LSG-33-6-72 33" 36" 6" 72" 173 lbs. $2093.00
796LSG-33-6-84 33" 36" 6" 84" 205 lbs. $2178.00
796LSG-39-6-60 39" 42" 6" 60" 153 lbs. $2092.00
796LSG-39-6-72 39" 42" 6" 72" 190 lbs. $2181.00
796LSG-39-6-84 39" 42" 6" 84" 227 lbs. $2271.00
All items in RED ship express from our warehouses.
