796RBF Roller Bed Inclined Floor-to-Floor Belt Conveyor

Manufacturer: Roach Conveyors

Volume Discounts Apply
24 Hour Shipment

FOB: Midwest warehouse

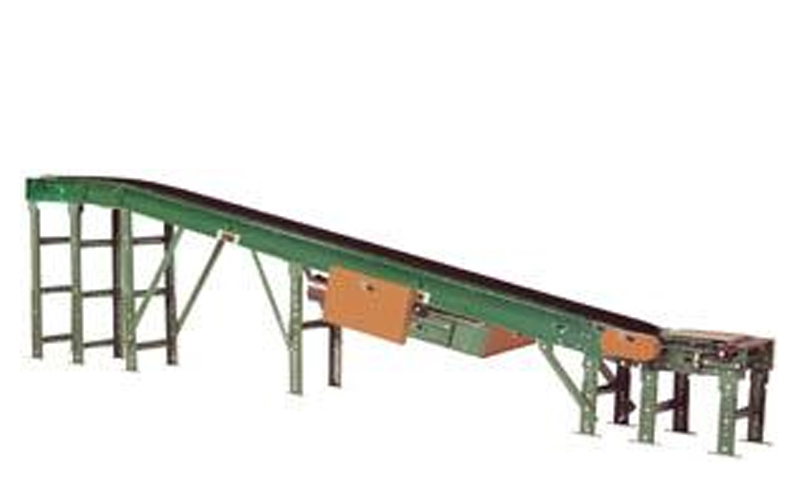

Conveyor supports pictured are optional and not included in the price!


Roach's Roller Bed Inclined Floor-to-Floor Belt Conveyor provides higher load capacity, reversible flow and nose-over allows for simple adjustments for inclines 0-35°. Shown with optional supports, knee braces, chain driven feeder and right hand drive. All units furnished standard with left hand drive.

Specifications:

  • Belting: Black PVC ruff-top.
  • Carrier Rollers: 1.9" dia. x 16 gauge steel, model 196S.
  • Drive Pulley: 8" dia. with 1-7/16" dia. shaft, both machine crowned and fully lagged.
  • Tail Pulley: 4" dia., machine crowned, 1-3/16" dia. shaft.
  • Return Rollers: 1.9" dia. x 16 gauge steel, model 196S, adjustable.
  • Center Drive: Reversible drive, 24" integral belt take-up.
  • Safety Pop-Out Roller: Standard on both ends, 1.9" dia. x 16 gauge steel roller, model 196S.
  • Belt Speed: 60 FPM, constant.
  • Bed: 7" x 1-1/2" x 12 gauge channel frame. Bed sections attached with couplings and floor supports.
  • Nose-Over: Provides smooth transition from incline to horizontal position. Single nose-over adjusts 0°-20°, double nose-over adjusts 0°-35° degrees (specify single or double).
  • Bearings: All pulley bearings are precision heavy duty, lubricated, ball bearing units with cast iron housings.
  • Motor Drive: 1/3 HP, 230/460/3, 60 cycle, TEFC right angle gear motor.
  • Roller Chain: Drive pulley is driven by No. 50 roller chain for 1-1/2 HP or less No. 60 chain on larger drives. Chain take-up provided on motor base.
  • Floor Supports: Optional.
  • Electrical Controls: Optional.


All of Roach's pre-engineered line can easily be adapted to special application needs. The basic unit has already been engineered and can often be shipped quickly.

If you need a large quantity of this product, call us at 1-800-338-1382 for additional bulk discounts!
  • Model Info

35 Models Available for 796RBF Roller Bed Inclined Floor-to-Floor Belt Conveyor

  • Prices subject to change without notice

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by click the red button bellow.

Model No. Belt Width Width Between Frames Length Weight Price Each Qty
796RBF-12-10 12" 15" 10' 730 lbs. $2964.00
796RBF-12-20 12" 15" 20' 930 lbs. $3581.00
796RBF-12-30 12" 15" 30' 1130 lbs. $4161.00
796RBF-12-40 12" 15" 40' 1331 lbs. $4760.00
796RBF-12-50 12" 15" 50' 1531 lbs. $5420.00
796RBF-18-10 18" 21" 10' 857 lbs. $3182.00
796RBF-18-20 18" 21" 20' 1111 lbs. $3960.00
796RBF-18-30 18" 21" 30' 1364 lbs. $4710.00
796RBF-18-40 18" 21" 40' 1618 lbs. $5478.00
796RBF-18-50 18" 21" 50' 1872 lbs. $6290.00
796RBF-24-10 24" 27" 10' 983 lbs. $3489.00
796RBF-24-20 24" 27" 20' 1291 lbs. $4414.00
796RBF-24-30 24" 27" 30' 1598 lbs. $5310.00
796RBF-24-40 24" 27" 40' 1906 lbs. $6226.00
796RBF-24-50 24" 27" 50' 2213 lbs. $7185.00
796RBF-30-10 30" 33" 10' 1110 lbs. $3662.00
796RBF-30-20 30" 33" 20' 1471 lbs. $4707.00
796RBF-30-30 30" 33" 30' 1832 lbs. $5725.00
796RBF-30-40 30" 33" 40' 2194 lbs. $6756.00
796RBF-30-50 30" 33" 50' 2555 lbs. $7819.00
796RBF-36-10 36" 39" 10' 1237 lbs. $3930.00
796RBF-36-20 36" 39" 20' 1652 lbs. $5198.00
796RBF-36-30 36" 39" 30' 2066 lbs. $6432.00
796RBF-36-40 36" 39" 40' 2481 lbs. $7698.00
796RBF-36-50 36" 39" 50' 2896 lbs. $8995.00
796RBF-42-10 42" 45" 10' 1363 lbs. $4141.00
796RBF-42-20 42" 45" 20' 1832 lbs. $5571.00
796RBF-42-30 42" 45" 30' 2300 lbs. $6969.00
796RBF-42-40 42" 45" 40' 2769 lbs. $8399.00
796RBF-42-50 42" 45" 50' 3238 lbs. $9860.00
796RBF-48-10 48" 51" 10' 1234 lbs. $4355.00
796RBF-48-20 48" 51" 20' 1776 lbs. $5949.00
796RBF-48-30 48" 51" 30' 2319 lbs. $7509.00
796RBF-48-40 48" 51" 40' 2861 lbs. $9107.00
796RBF-48-50 48" 51" 50' 3403 lbs. $10725.00
All items in RED ship express from our warehouses.

1 Option Available for 796RBF Roller Bed Inclined Floor-to-Floor Belt Conveyor

796RBF Roller Bed Inclined Floor-to-Floor Belt Conveyor Option Image

Option:ATS4 and ATS6 Screw Type Auxiliary Take-Ups

24 Hour Shipment on Model ATS4!

Features
• 4" Aux. Take-Up: (2) 4" dia. pulleys with 1-3/16" dia. shaft, machine crowned.
• 6" Aux. Take-Up: (2) 6" dia. pulleys with 1-7/16" dia. shaft, machine crowned.
• Frame: Depth of (4") 8" x 10 ga. formed steel, Depth of (6") 9-1/2” x 10 ga. formed steel.
• Take-Up: 24" belt take-up.
• Bearings: Heavy duty, relubable, ball bearings with cast iron housings.
Model No. Price Each Qty
ATS4 Call
ATS6 Call
All items in RED ship express from our warehouses.

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by click the red button bellow.
