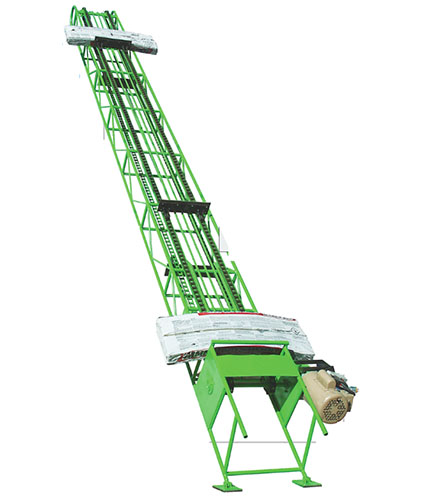

Chain and Flight Conveyor

Supplier: E-ZLIFT Conveyors

F.O.B. Colorado Warehouse
Price Per Application


E-ZLIFT Chain and Flight Conveyors are medium duty conveyors designed to moved packaged and rolled materials up 45 degree inclines.

Typical uses include: Shingles, shakes, cartons, building block, and tires.

Features:

  • Two continuously revolving detachbale chains, choice of lighter #32 chain or heavier #55 chain
  • 4" high rubber padded steel flights
  • 7/8" O.D. high-strength steel tubing frame
  • Approximate 65 FPM constant chain speed
  • Chain take-up adjustments
  • Drive mounted on side of loading end
  • For electric motor - direct drive speed reducer
  • For gas engine - internal V-belt and roller chain reduction, and safety guards
  • Operating, maintenance and safety instructions

Accessories:

  • Electric motor or gasoline engine
  • Start/Stop switch for electric motor
  • Dolly and hitch assembly
  • Portavator pads ahead of each flight

Options:

  • Heavy duty #CA550 chain
  • Curved flights to fit tire contour with #55 and #CA550 chains
  • Model Info

6 models for Chain and Flight Conveyor

  • Prices subject to change without notice

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by clicking the red button below.

Model No. Length Chain Frame Width Flights Approx. Weight Price Qty
C&F-050-2-16 16 ft. 32 lb. 19" 3 181 lbs. Call for Price
C&F-050-2-21 21 ft. 32 lb. 19" 4 207 lbs. Call for Price
C&F-050-1-16 16 ft. 55 lb. 19" 3 205 lbs. Call for Price
C&F-050-1-21 21 ft. 55 lb. 19" 4 258 lbs. Call for Price
C&F-050-1-26 26 ft. 55 lb. 19" 5 310 lbs. Call for Price
C&F-050-1-31 31 ft. 55 lb. 19" 6 362 lbs. Call for Price
