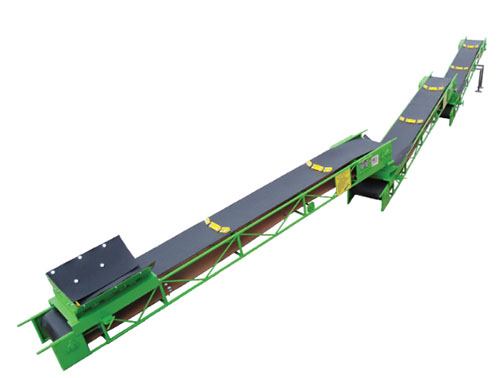

E-ZMite Troughing Conveyor

Manufacturer: E-ZLIFT

F.O.B. Midwest Factory

The E-ZMite Troughing Conveyor is designed to glide loose and packaged materials, such as dirt, sand, grain, and dry sludge at inclines up to 30° degrees. Lightweight, compact and easy-to-fit in tight work spaces.

Ideal for:

  • Dirt
  • Gravel
  • Sand
  • Grain
  • Dry Sludge
  • Carton

Features:

  • 14" wide mini cleated belt with 1.25" high cleats on 48" centers
  • Belt edges are the highest point of conveyor dimension
  • 7/8" O.D. high strength steel tubing truss frame
  • Frame dimensions - 10.5" overall height
  • 21" overall width at drive end
  • 18" overall width at idle end
  • Approximately 50 F.P.M. belt speed Conveyor belt take-up adjustments
  • Conveyor belt take-up adjustments
  • 1/4 H.P. 115V gear motor mounted within conveyor frame, 2.5 amp draw and overload circuit breaker
  • Safety guards
  • Electrical inlet and outlet for connecting one unit to another
  • Operating, maintenance, and safety manuals

Accessories:

  • Start/Stop switch
  • Receiving Hopper 24" wide x 24" long x 6" high

Options:

  • Mini-cleated belt

Note: Pricing includes motor.

If you need a large quantity of this product, call us at 1-800-338-1382 for additional bulk discounts!
  • Model Info

2 Models Available for E-ZMite Troughing Conveyor

  • Prices subject to change without notice

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by clicking the red button below.

Model No. Length Approx. Weight Price Ea. Qty
20-10 10 ft. 190 lbs. Call for Pricing
20-12 12 ft. 200 lbs. Call for Pricing
