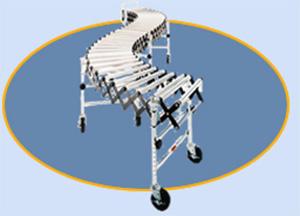

Medium-Duty Accordion Roller Conveyors

Manufacturer: Roll-A-Way

FOB: Midwest Warehouse
$12 handling fee for orders less than $150


Flexible conveyors designed for packages with flat or irregular bottoms.

Specifications:

  • Load capacity: 200 lbs. per lineal ft.
  • 1-3/8" O.D. galvanized steel rollers on 5-1/4" axle centers
  • 28" to 36"
  • Box stop, pull handle and couplers standard
  • 5 x 1-1/2" swivel/wheel lock casters


27 Models Available for
Medium-Duty Accordion Roller Conveyors

*Prices subject to change without notice

Products without prices are not available for purchase through our shopping cart
If you are interested in these products, add them to your quote list by clicking the red button below

Model No. Widths Roller Per Section Length Contracted/Extended at Maximum Leg Sets Per Unit Bed Sections Per Unit Price Ea. Qty
RLR18008S 18" 9 2' 7" - 8' 6" 3 2 $1094.68
RLR18012S 18" 9 3’ 9" – 12’ 2" 4 3 $1450.12
RLR18016S 18" 9 4’ 10" – 15’ 10" 5 4 $1832.93
RLR18020S 18" 9 5’ 11" – 19’ 6" 6 5 $2182.29
RLR18024S 18" 9 7’ 0" – 23’ 2" 7 6 $2448.62
RLR18028S 18" 9 8’ 4" – 27’ 9" 8 7 $2922.54
RLR18032S 18" 9 9’ 5" – 31’ 5" 9 8 $3302.30
RLR18036S 18" 9 10’ 6" – 35’ 1" 10 9 $3631.42
RLR18040S 18" 9 12’ 5" – 41’ 6" 12 11 $4058.74
RLR24008S 24" 9 2' 7" - 8' 6" 3 2 $1167.61
RLR24012S 24" 9 3’ 9" – 12’ 2" 4 3 $1543.31
RLR24016S 24" 9 4’ 10" – 15’ 10" 5 4 $2009.13
RLR24020S 24" 9 5’ 11" – 19’ 6" 6 5 $2294.70
RLR24024S 24" 9 7’ 0" – 23’ 2" 7 6 $2734.17
RLR24028S 24" 9 8’ 4" – 27’ 9" 8 7 $3329.64
RLR24032S 24" 9 9’ 5" – 31’ 5" 9 8 $3651.65
RLR24036S 24" 9 10’ 6" – 35’ 1" 10 9 $4022.30
RLR24040S 24" 9 12’ 5" – 41’ 6" 12 11 $4441.53
RLR30008S 30" 9 2'8" - 8'6" 3 2 $1209.00
RLR30012S 30" 9 3'9" - 12'2" 4 3 $1605.00
RLR30016S 30" 9 4'10" - 15'10" 5 4 $2034.00
RLR30020S 30" 9 5'11" - 19'6" 6 5 $2504.40
RLR30024S 30" 9 7'0" - 23'2" 7 6 $2854.80
RLR30028S 30" 9 8'4" - 27'9" 8 7 $3286.20
RLR30032S 30" 9 9'5" - 31'5" 9 8 $3838.80
RLR30036S 30" 9 10'6" - 35'1" 10 9 $4312.80
RLR30040S 30" 9 12'5" - 41'6" 12 11 $4810.20


1 Option Available for
Medium-Duty Accordion Roller Conveyors

Medium-Duty Accordion Roller Conveyors Option Image

Option: Swing Stick Extension

  • Packages glide easily over smooth rolling balls.

5' rigid frame aluminum Swing Stick with 3" axle centers attaches to the end of either the Accordian Expandable Conveyor or the Heavy Duty Accordian Wheel Conveyor. It can extend up into truck beds making loading and unloading fast and more efficient. When it is not in use, it nests on top of the conveyor.

Surcharge may apply.

Model No. Length Width Wheels Per Axle Capacity Weight Price Ea. Qty
STK-145 5' 14" 6 275 lbs 45 lbs $370.00
STK-185 5' 18" 6 275 lbs 48 lbs $390.00
STK-245 5' 24" 6 275 lbs 56 lbs $496.00
