Roach Steel Skate Wheel Conveyors - WS Series - 12 Inch Width

Roach Steel Skate Wheel Conveyors - WS Series - 12 Inch Width

Supplier: Roach Conveyors

In Stock

FOB: Midwest warehouse

Prices include:

Wheels: 1-15/16" dia. prelubricated ball bearing with hardened raceway.
Wheel Capacity: 50 lbs. per zinc-plated wheel.
Axles: 1/4" dia. galvanized steel bolt-type axle and lock nut.
Frames: Formed galvanized steel channel 2-1/2" x 1" x 12 gauge.
Couplings: Hook and rod. Hooks on one end and rod ("stud") other end.
Frame Capacity: 350 lbs. max. distributed live load per 10' section, or 1300 lbs. per 5' section.

Model Info

5 models for Roach Steel Skate Wheel Conveyors - WS Series - 12 Inch Width

Prices subject to change without notice

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by clicking the red button below.

Model No.	Length	Overall Width	Wheels Per Foot	Weight	Price Ea.
WS-12-6-10	10'	12"	6	64 lbs.	$466.30
WS-12-8-10	10'	12"	8	67 lbs.	$504.40
WS-12-10-10	10'	12"	10	70 lbs.	$542.60
WS-12-12-10	10'	12"	12	74 lbs.	$578.70
WS-12-16-10	10'	12"	16	81 lbs.	$650.80

Difference between Cart and Quote

3 Options Available for Roach Steel Skate Wheel Conveyors - WS Series - 12 Inch Width

Roach Steel Skate Wheel Conveyors - WS Series - 12 Inch Width Option Image

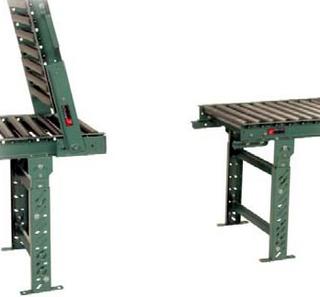

Manual Gates

Manual gate assemblies are one of the most common conveyor accessories. Simple to install, manual gate assemblies offer passage to and from operator work cells as well as providing access for fork trucks, walkways, etc. Gates include hardware and conveyor section. Maximum length is 5'-0".

Maximum weight of gate section must NOT exceed 75 lbs. If gate weight (i.e. conveyorsection) exceeds 75 lbs., use spring loaded gate.

Model No.	Fits Conveyor	Min. Elevation	Min. Length	Max. Length	Max. Weight	Price Ea.
WSGM	Galvanized Wheel	3-5/8"	6"	5'	75 lbs	$98.00
138GGM	138G Galvanized	3-5/8"	6"	5'	75 lbs	$98.00
192SGM	192S Steel	4-3/8"	6"	5'	75 lbs	$128.80
196GGM	196G Galvanized	4-3/8"	6"	5'	75 lbs	$128.80
254SGM	254S Steel	4-11/16"	6"	5'	75 lbs	$128.80

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by click the red button bellow.

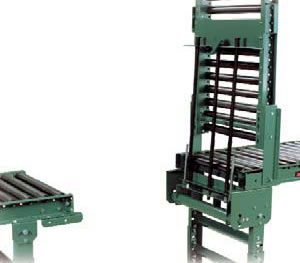

Spring Loaded Gates

Roach spring loaded gate assemblies may be used to provide openings and walkways for operators, pedestrians or fork truck traffic or to simply make work areas in and around conveyors readily accessible. Tensioned springs offer increased lift capacity with minimal effort. Gates include hardware and conveyor section.

Model No.	Fits Conveyor	Min Elevation	Min Length	Max Length	Max. Weight	Price Ea.
WSGS	Galvanized Wheel	13" TOR	2' 6"	5'	150 lbs	$583.80
138GGS	138G Galvanized	13" TOR	2' 6"	5'	150 lbs	$583.80
192SGS	192S Steel	13" TOR	2' 6"	5'	150 lbs	$614.60
196GGS	196G Galvanized	13" TOR	2' 6"	5'	150 lbs	$614.60
254SGS	254S Steel	13" TOR	2' 6"	5'	150 lbs	$932.40
251SGS	251S Steel	13" TOR	2' 6"	5'	150 lbs	$932.40

Products without prices are not available for purchase through our shopping cart.

If you are interested in these products, add them to your quote list by click the red button bellow.

BSW Gravity Butt Spurs

Roach Gravity Butt Spurs allow product to converge or diverge for convenient movement to and from spur lines at either 30 or 45 degrees. Gravity Butt Spurs feature 24 Hour Shipment

Model No.	OAW	Degrees	Price Ea.
BSW-12-30	12"	30°	$486.00
BSW-12-45	12"	45°	$472.00
BSW-18-30	18"	30°	$529.00
BSW-18-45	18"	45°	$497.00
BSW-24-30	24"	30°	$564.00
BSW-24-45	24"	45°	$532.00
